SWT-NS700 Geomembrane Welding Machine HDPE 0.5-3mm
Product description:
The welding machine adopts advanced heat chip structure, high power, high pressure, fast welding speedsuitable for 0.5-3.0mm thick film material welding machine, suitable for HDPE, LDPE, PVC, EVA, ECB, PPand other hot melt materials, Products are used in water conservancy, aquaculture, landfll, chemical andmining, sewage treatment, roof construction and other fields of waterproof and seepage control engineering.
Technical Data:
| Voltage | 230v |
| Frequency | 50/60HZ |
| Power | 2800W |
| Weight | 7.5kg |
| Overlap width | 16cm |
| Welding speed | 0.5-3.5m/min |
| Temperature | 50-620℃ |
| Seam Strength | ≥85%Original |
| Seam width | 15mm*2,Interior Cavity 15mm |
| Welding thickness | 0.5-3mm |
| Feeding method | Same side&Two sides |
| Digital display | Temperature&Speed |
Application:
Products are used in water conservancy, aquaculture, landfll, chemical andmining, sewage treatment, roof construction and other fields of waterproof and seepage control engineering

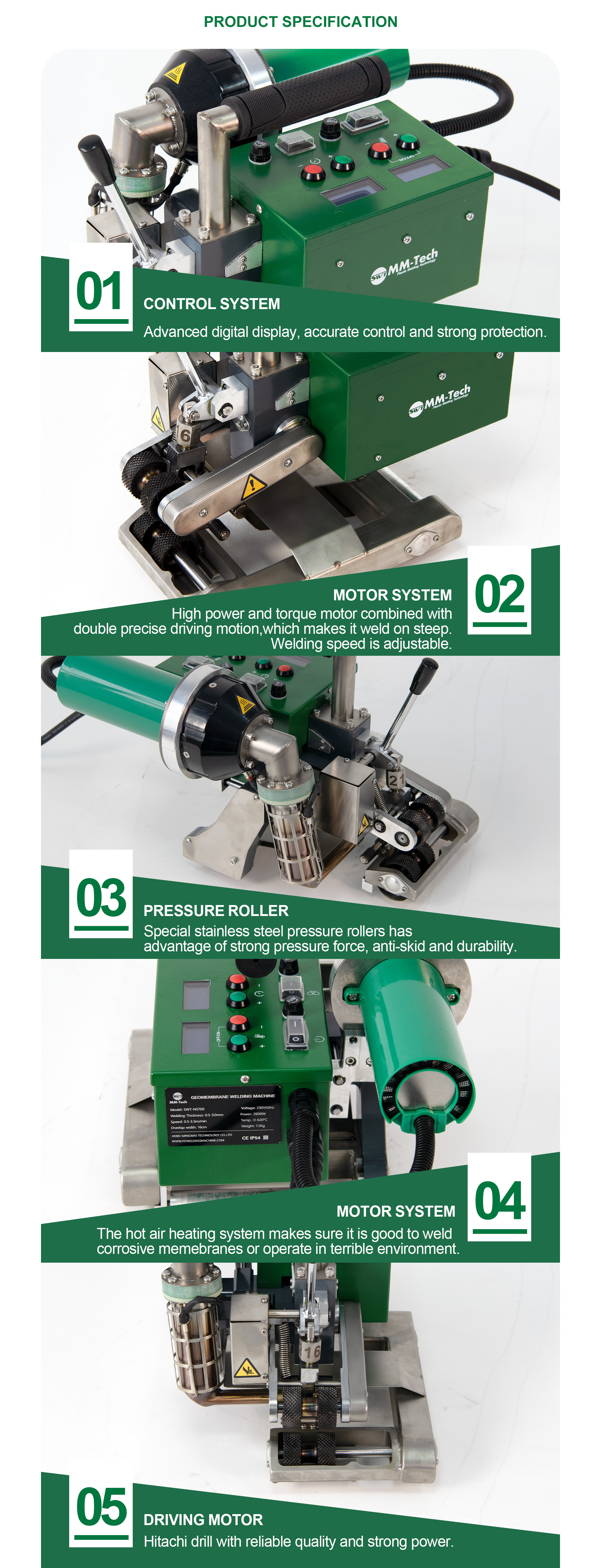

Product Feature:
CONTROL SYSTEM
Advanced digital display,accurate control and strong protection.
MOTOR SYSTEM
High power and torque motor combined with double precise driving motion,which makes it weld on steep.Welding speed is adjustable.
PRESSURE ROLLER
Special stainless steel pressure rollers has
advantage of strong pressure force,anti-skid and durability.
MOTOR SYSTEM
The hot air heating system makes sure it is good to weld corrosive memebranes or operate in terrible environment.
DRIVING MOTOR
Hitachi drill with reliable quality and strong power
