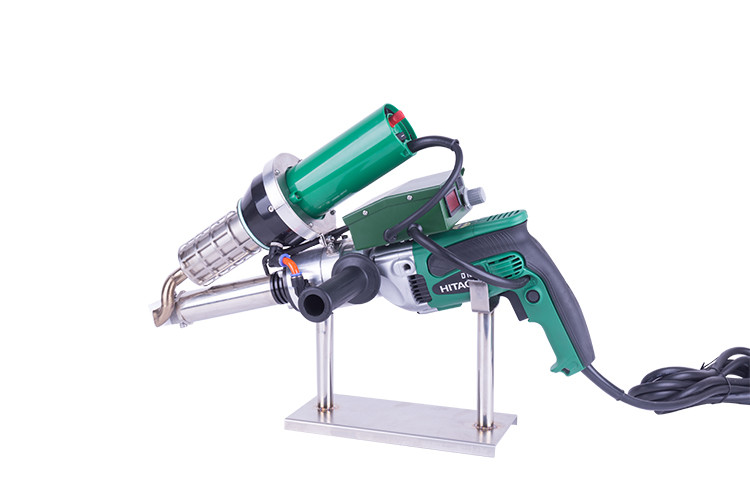

SWT-NS600B Plastic Welder Welding Gun Plastic Extrusion Welder Hand Extruder
Extrusion Welder Machine Instruction:
1.Plastic geomembrane extrusion welder is used for welding PE, PP, PVC, PVDF, HDPE and so on.
2.Handheld plastic extrusion welding machines are used for plastic sheets, and bitumen waterproofing and packaging materials with hot air for tanks and lining and agricultural and environmental cover.
3.Welding machines for polypropylene and polyethylene pipes.
4.Automatic four point welders are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing projects.
Extrusion Welder Machine Specification:
| Voltage: | 220V |
| Frequency: | 560/60HZ |
| Power: | 3400W Hot Air + 800W Hitachi Motor |
| Wind Temperature: | 20-600℃ |
| Heating Temperature When Extruding: | 200-380℃ |
| Extruding Volume: | 2 kg/h |
| Diametere of Welding Rod: | Φ3.0mm-4.0mm |
| Weight: | 6.5 kg |
| Usage: | PVC Tarpaulin Welding Extruder |
| Welding Thickness | 8-40mm |
Extrusion Welder Machine Features:
1.This series of welding machine is powerful with high welding speed and good welding quality.
2.It is available for welding PE, PVDF, PVC, PP and other hot melt materials.
3.It is the first one to have a digital display control, 360 degree rotating welding head,the motor cold start protection, independent heating of welding rod and membrane material and other functions in China.
Package:
After-Sales Service:
We always provide high quality products and workable price for every clients and
have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work
under normal operating, we provide them for free.
