5000mm Butt 380v Plastic Sheet Welding Machine

Hebei Mingmai Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

5000mm Butt 380v Plastic Sheet Welding Machine

  • 1
  • 2
  • 3

Brand Name : MM-TECH

Model Number : SWT-PH5000

Certification : CE

Place of Origin : HEBEI, CHINA

MOQ : 1

Price : US$22,000-26,000/set

Payment Terms : T/T, Western Union, PayPal, Credit Card

Supply Ability : 1200 sets per week

Delivery Time : Within 7 days

Packaging Details : 1 Plywood Case

Max Welding Length : 5000mm

Roll circle diameter minimum : 550mm

Rated voltage : 380V

Frequency : 50/60Hz

Heating power : 10kW

Rolling motor power : 1.5kW

Rated current : 13.6A

Material thickness to weld : 3-30mm

Net weight : 1800kg

Gross weight : 1950kg

Contact Now

Plastic Sheet Butt Welding Machine Sheet Welder Features

1. Manual control system, capable of automatically adjusting the heating temperature, time and pressure according to the parameters of material under processing.
2. Brand-new integrated frame, highly reliable transmission mechanism, stable in work and superior in performance.
3. Sectional heating for models of 3 meter and larger, enabling large models to have the advantage of energy conservation, as same as the small models do, while processing two small workpieces.
4. Specialized anti-corrosive surface treatment technology, making the surface coating always new as time goes by.
5. Components imported from Japan for control system, with stable properties, lasting and endurable.

5000mm Butt 380v Plastic Sheet Welding Machine

Plastic Sheet Butt Welding Machine Sheet Welder Parameters

Model SWT-PH5000
Max welding length 5000mm
Sheet thickness to weld 3-30mm
Roll circle diameter minimum 550mm
Air pressure 6-8kg.f/cm²
Rated voltage 380V
Frequency 50/60Hz
Rated current 13.6A
Heating power 10kW
Rolling motor power 1.5kW

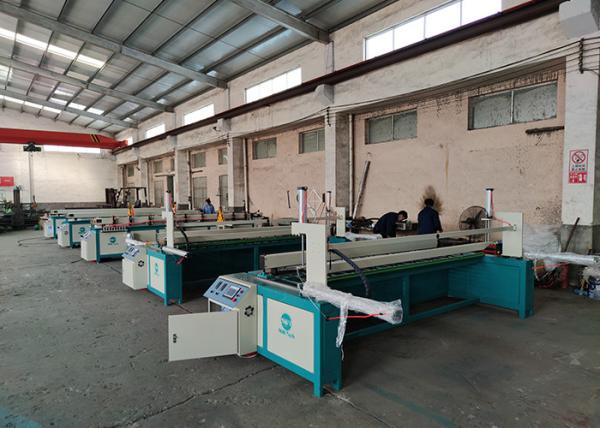

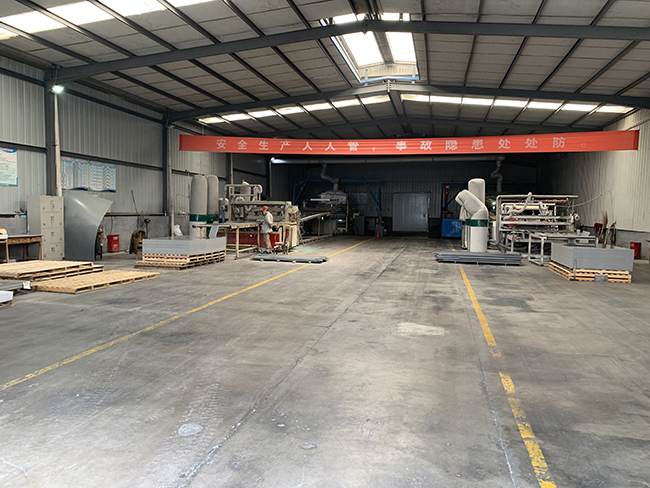

Plastic Sheet Butt Welding Machine Sheet Welder Workshop

5000mm Butt 380v Plastic Sheet Welding Machine
